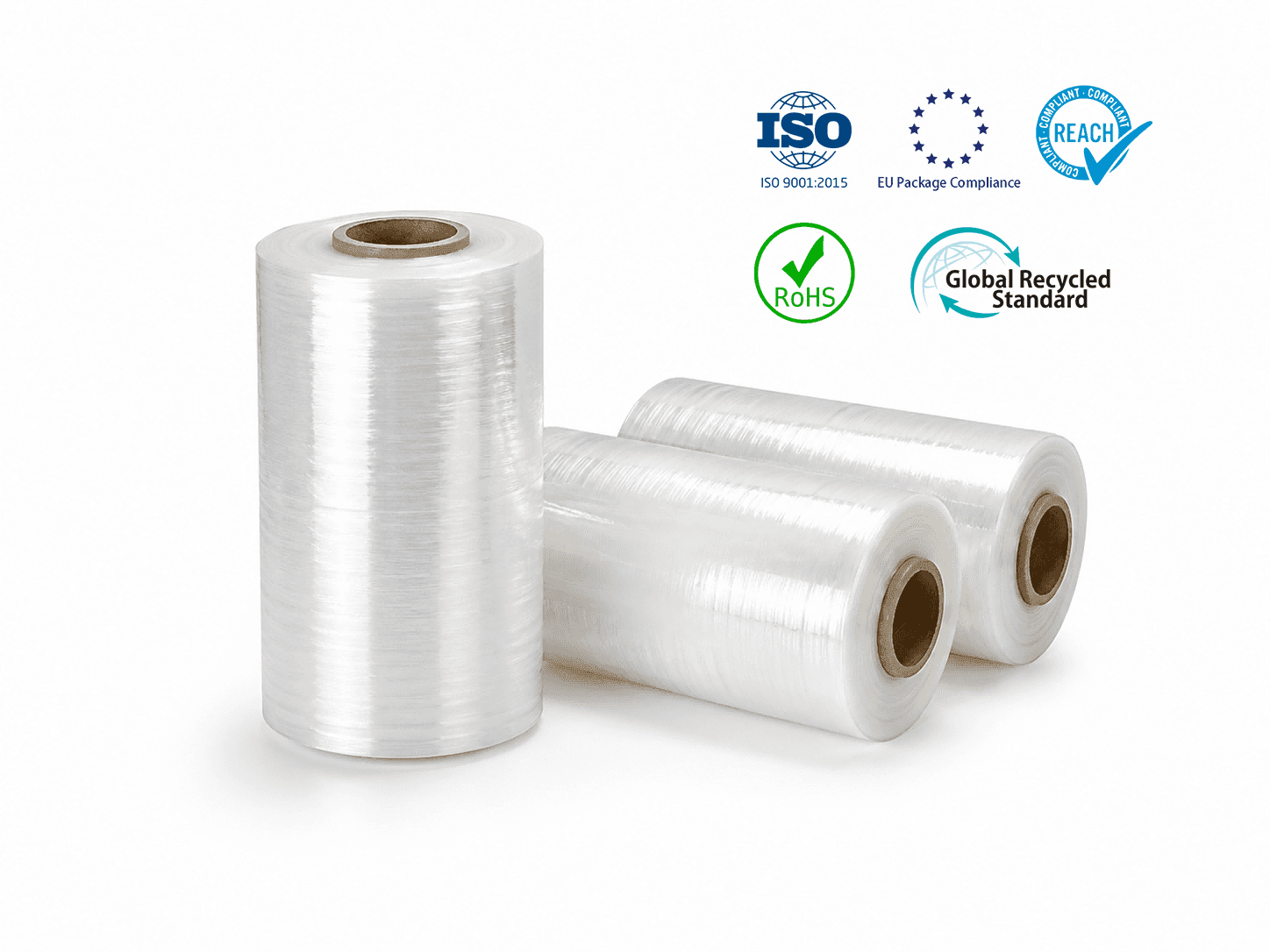

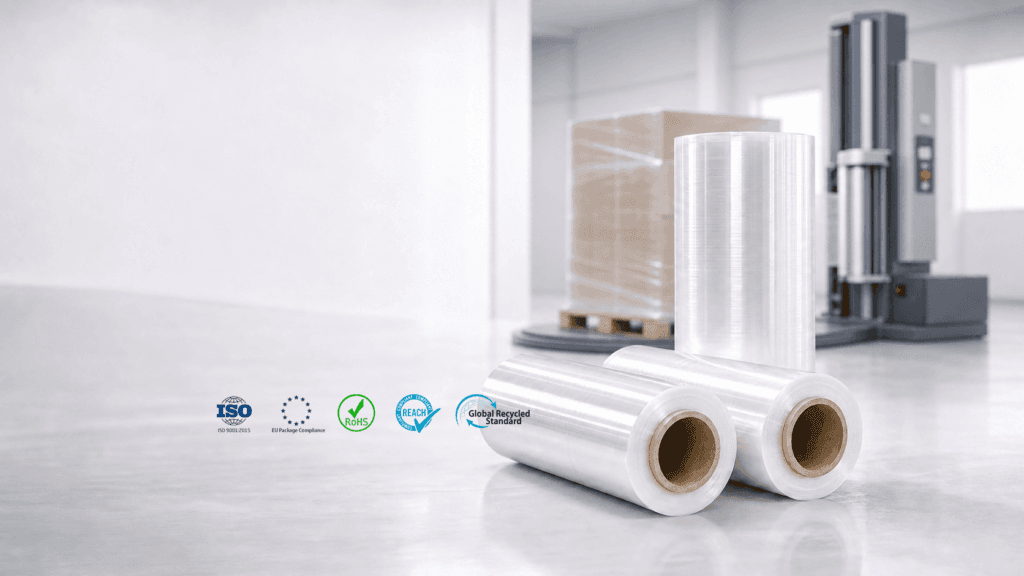

Machine Stretch Wrap(Machine Stretch Film)
High-performance machine stretch film for automatic
pallet wrapping

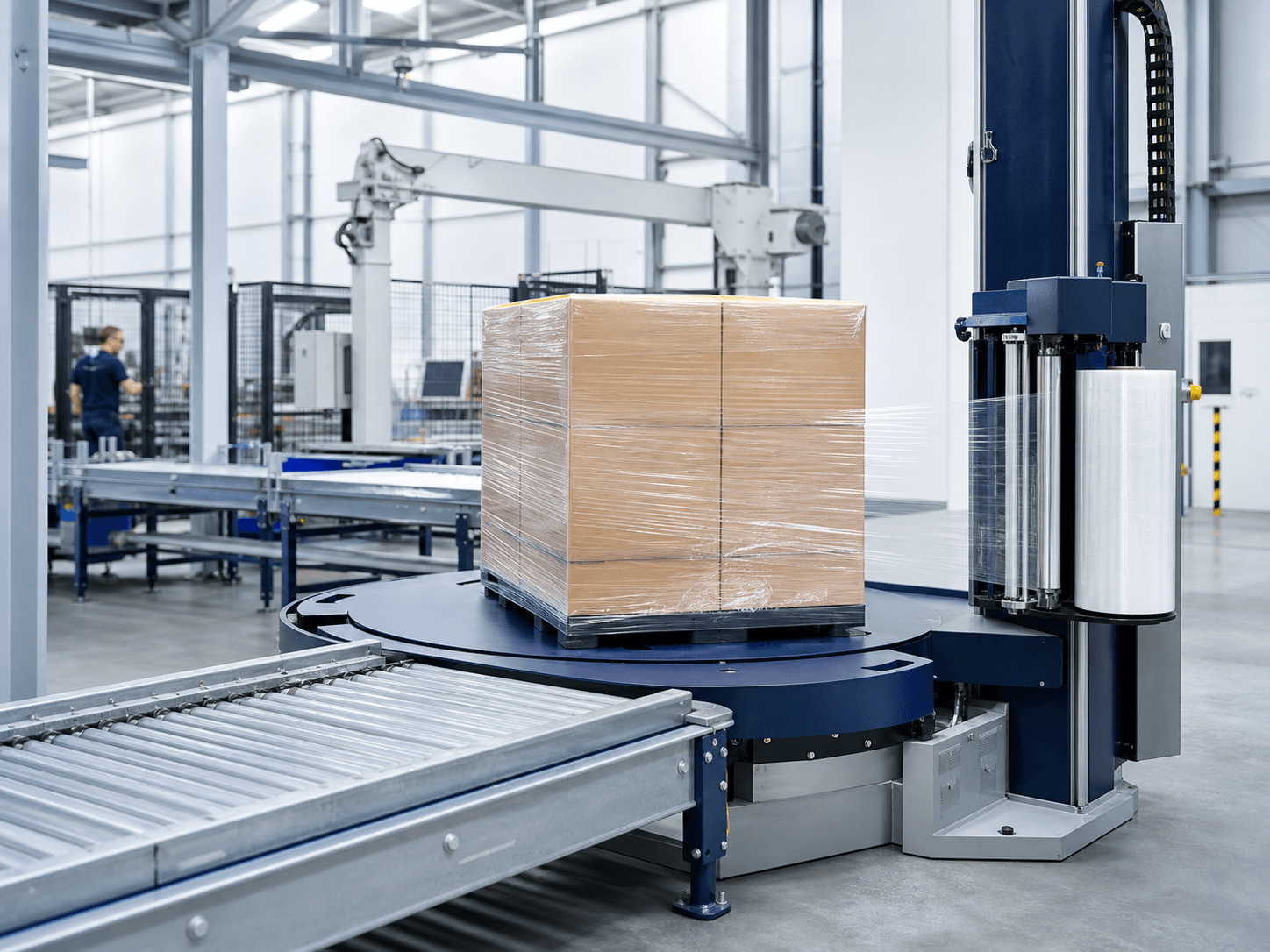

Designed for automatic and semi-automatic pallet wrapping systems,
our machine stretch film delivers smooth unwinding, consistent stretch
performance and reliable load containment for high-volume packaging
operations
Reliable Machine Stretch Film for Efficient Industrial Packaging
Tuosheng Packaging manufactures machine stretch film, also called machine stretch wrap or machine pallet wrap, in Suzhou, China. Our LLDPE and mLLDPE machine rolls are made from 15 to 50 µm (about 60 to 200 gauge), most often in 500 mm (20 in) width, with roll lengths of 800 to 2,000 m (about 2,600 to 6,500 ft) on a 76 mm (3 in) paper core. The film runs on semi-automatic turntable wrappers and on automatic lines with powered pre-stretch. Roll weights are stated as net film weight, excluding the core.
We supply the film, not the wrapping machine. Send us your wrapper model and current roll label, and we will match the specification and send a free sample for a trial on your own line.
Key Features
Up to 400% Stretch Performance
Selected mLLDPE grades reach up to 400% stretch on powered pre-stretch wrappers, so each roll covers more pallets. Most standard grades run at 200–300%.
Consistent Machine Performance
Smooth and uniform film unwinding supports stable operation on automatic and semi-automatic pallet wrapping machines.
Strong Puncture Resistance
Higher-performance grades resist tearing at pallet corners and carton edges, even when the film is stretched hard.
Strong and Stable Load Containment
The film keeps its holding force after wrapping, so pallets stay tight through forklift handling and truck transport.
Machine Stretch Film Specifications
Typical & Custom Machine Stretch Film Specifications
The values below are common production references, not fixed purchasing limits. Film grade, dimensions, roll configuration, core size, color and packaging can be adjusted according to your pallet wrapper and order requirements.
Don’t see your current roll specification? Send us your pallet-wrapper model, current roll label, core dimensions and required film performance. We will check machine compatibility and production feasibility before quotation.
| Parameter | Common / Reference Option | Customization & Selection Note |
|---|---|---|
| Film Material Machine-grade formulation | Cast LLDPE + mLLDPE Cast machine stretch film | Film grade and formulation are selected according to the required stretch performance, holding force, puncture resistance and wrapping-line conditions. |
| Film Thickness Load and equipment dependent | 15–50 μm Approx. 60–200 gauge | Selected according to pallet weight, load shape, exposed edges, required containment force and the wrapper’s pre-stretch system. |
| Film Width Machine and custom roll formats | 250–2,000 mm Approx. 10–79 in; 500 mm (20 in) is standard | Widths outside common machine-film formats may require a different roll configuration and MOQ. |
| Roll Length Length and net film weight | 800–2,000 m Approx. 2,600–6,500 ft | Roll length and net film weight can be customized, including the US 20 in × 5,000 ft and 6,000 ft formats. |
| Net Film Weight Core excluded | Net film weight Paper core weight excluded | All stated roll weights are net film weight. We spot-check paper core weight before production and finished roll weight after winding, then subtract the core weight. |
| Paper Core Core inner diameter | 76 mm (3 in) Standard paper core | Other core sizes can be evaluated according to the film carriage, maximum roll dimensions, required roll weight and order quantity. |
| Film Color Identification and privacy | Transparent Standard production option | Black and custom colors are available subject to color requirements, film specification and order quantity. |
| Stretch Performance Film and machine dependent | 200–400% Reference performance range | Stretchability of up to 400% is available for selected film grades on powered pre-stretch wrappers. |
| Machine Compatibility Wrapper and film-carriage details | Automatic & Semi-Automatic Pallet wrapping systems | Please confirm the wrapper model, maximum roll weight and core dimensions before ordering. We supply the film only, not the wrapping machine. |
Common Machine Stretch Wrap Sizes
| Market | Common Format | Equivalent |
|---|---|---|
| US | 20 in × 5,000 ft, 60–80 gauge | 500 mm × 1,524 m, approx. 15–20 μm |
| US | 20 in × 6,000 ft, 60–80 gauge | 500 mm × 1,829 m, approx. 15–20 μm |
| EU / UK | 500 mm × 1,500 m, 17–23 μm | Approx. 20 in × 4,900 ft |
Other sizes are quoted on request. See the full stretch wrap size chart for roll weights and packing, or check a roll with our roll weight calculator.
Packing & Container Loading
| Item | Standard Packing |
|---|---|
| Rolls per carton | 1 roll |
| Cartons per pallet | 64 cartons (64 rolls) |
| Container loading | Typically 640 cartons per 20GP and 1,440 cartons per 40GP |
Final loading is confirmed per order by roll size and weight. Standard MOQ is 3 tons for clear machine stretch film, and hand and machine stretch film can be mixed in one container.
Specification Support
Not Sure Which Machine Film Fits Your Wrapping Line?
Send us your pallet-wrapper model, current roll label, pre-stretch system, pallet details and estimated usage. We will recommend a compatible specification and send a free sample for a trial on your wrapping line.
- Wrapper Model
- Pre-Stretch System
- Current Roll Label
- Load Weight
- Quantity
Selection Guide
Choose Machine Stretch Film by Wrapping System and Load Type
Start with your pallet wrapper and your most difficult load. The film ranges below are typical starting points. We confirm the final specification after a sample trial on your own line.
Semi-Automatic
Turntable and Standard Warehouse Systems
For semi-automatic turntable wrappers and regular carton loads, a 17–23 μm (about 70–90 gauge) standard machine film is usually enough. What matters most is smooth unwinding, stable cling and a roll size and core that fit your wrapper.
- Typical film
- 17–23 μm (approx. 70–90 gauge), standard cast grade
- Smooth, quiet unwinding at wrapper speed
- Stable cling so the film tail stays down
- Roll weight and 76 mm (3 in) core that fit the film carriage

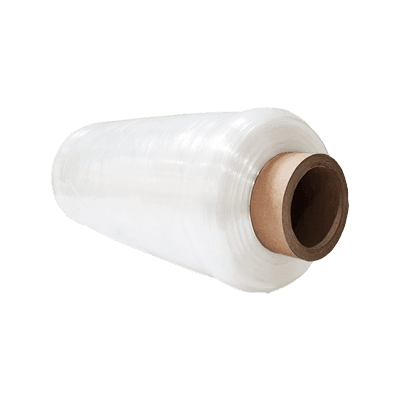

Automatic / Pre-Stretch
High-Volume Automatic Pallet Wrapping
On automatic lines with powered pre-stretch, choose a high-stretch mLLDPE grade with consistent gauge. It runs at higher pre-stretch ratios without breaks, so each roll wraps more pallets and the line stops less often.
- Typical film
- High-stretch cast mLLDPE grade, up to 400% stretch
- Pre-stretch ratio of your wrapper, e.g. 250% or 300%
- Even gauge across the whole roll
- Maximum roll diameter and weight your line accepts
High Containment
Heavy, Uneven or Sharp-Edged Loads
For heavy, uneven or sharp-edged loads, choose a thicker or higher-puncture grade, often 23–30 μm (about 90–120 gauge) or more, and protect corners with edge boards. Test on your own pallets before ordering in bulk.
- Typical film
- 23–30 μm or more (approx. 90–120 gauge), high-puncture grade
- Puncture and tear resistance at pallet corners
- Holding force through forklift handling and transport
- Edge boards on sharp corners, plus a line trial
Need Help Matching Film to Your Pallet Wrapper?
Send us your wrapper model, pre-stretch ratio and a photo of your current roll label. We will recommend a specification and send a free sample for a trial on your line.
Prepare the Right Machine Stretch Film Specification
Machine stretch film should be matched to the pallet wrapper, pre-stretch system, load profile and required containment. These guides will help you select a starting specification, prepare a clear RFQ and investigate common wrapping-line problems before approving a bulk order.
Machine Stretch Film Selection Guide
Compare wrapper types, film construction, pre-stretch settings, containment requirements and cost per pallet before selecting a film for line testing.
Read the selection guideMachine Film RFQ Checklist
Collect the roll dimensions, core size, wrapper settings, pallet details and documentation requirements needed for a more accurate quotation.
Prepare your RFQMachine Film Troubleshooting
Check likely causes of film breaks, poor unwind, excessive neckdown and unstable loads before changing the film specification or wrapper settings.
Review troubleshooting steps
GRS-Certified Recycled Material Options Available
Recycled-content options are available for eligible specifications, with traceability documentation for qualifying orders.
View GRS CertificateApplications
Automated
Warehouses
Ensures fast, consistent pallet wrapping to improve packaging efficiency and maintain stable loads in high-volume warehouse operations

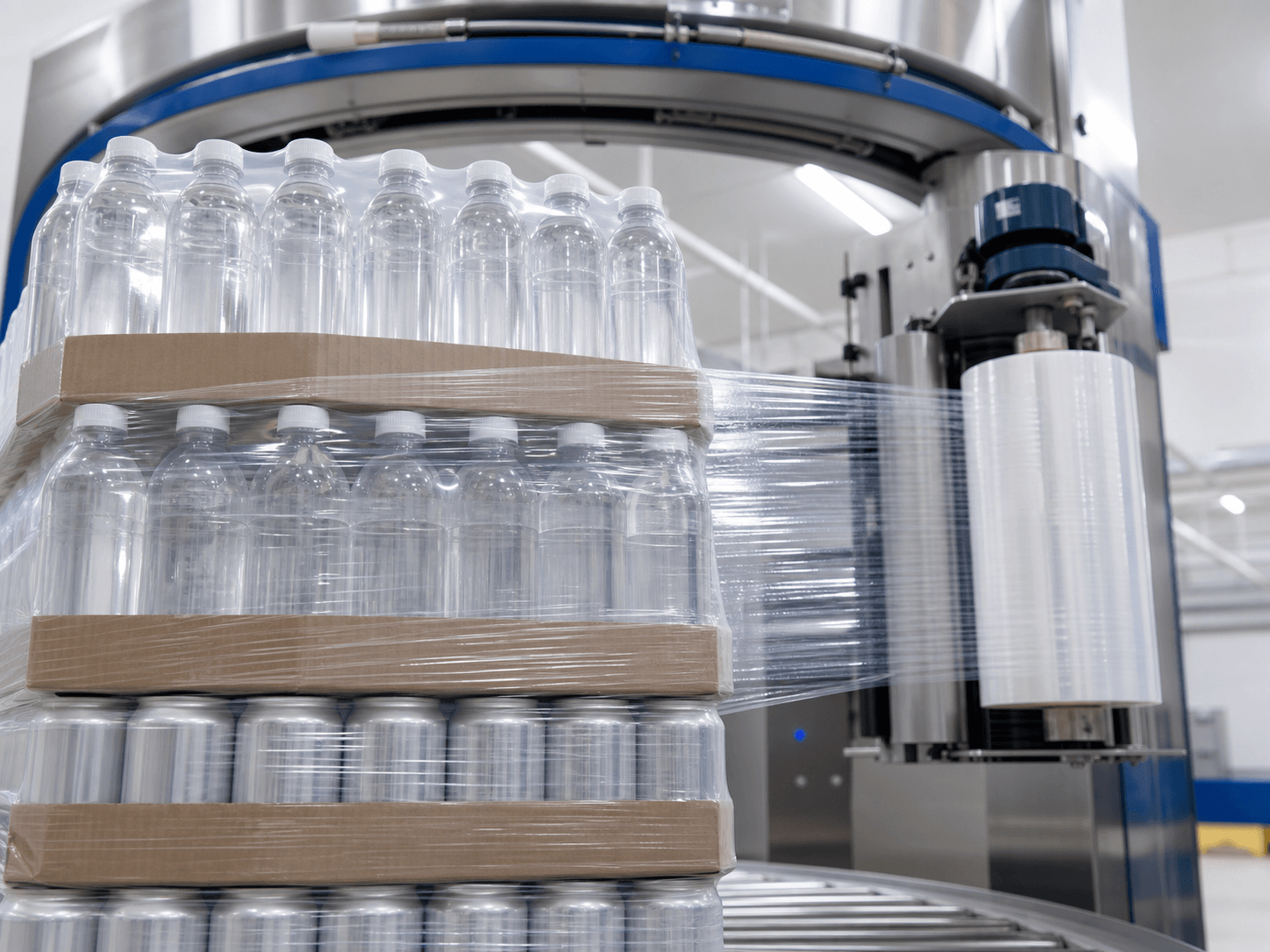

Food & Beverage
Products
Suitable for securing palletized cartons, bottled drinks, canned goods, and other packaged food products.

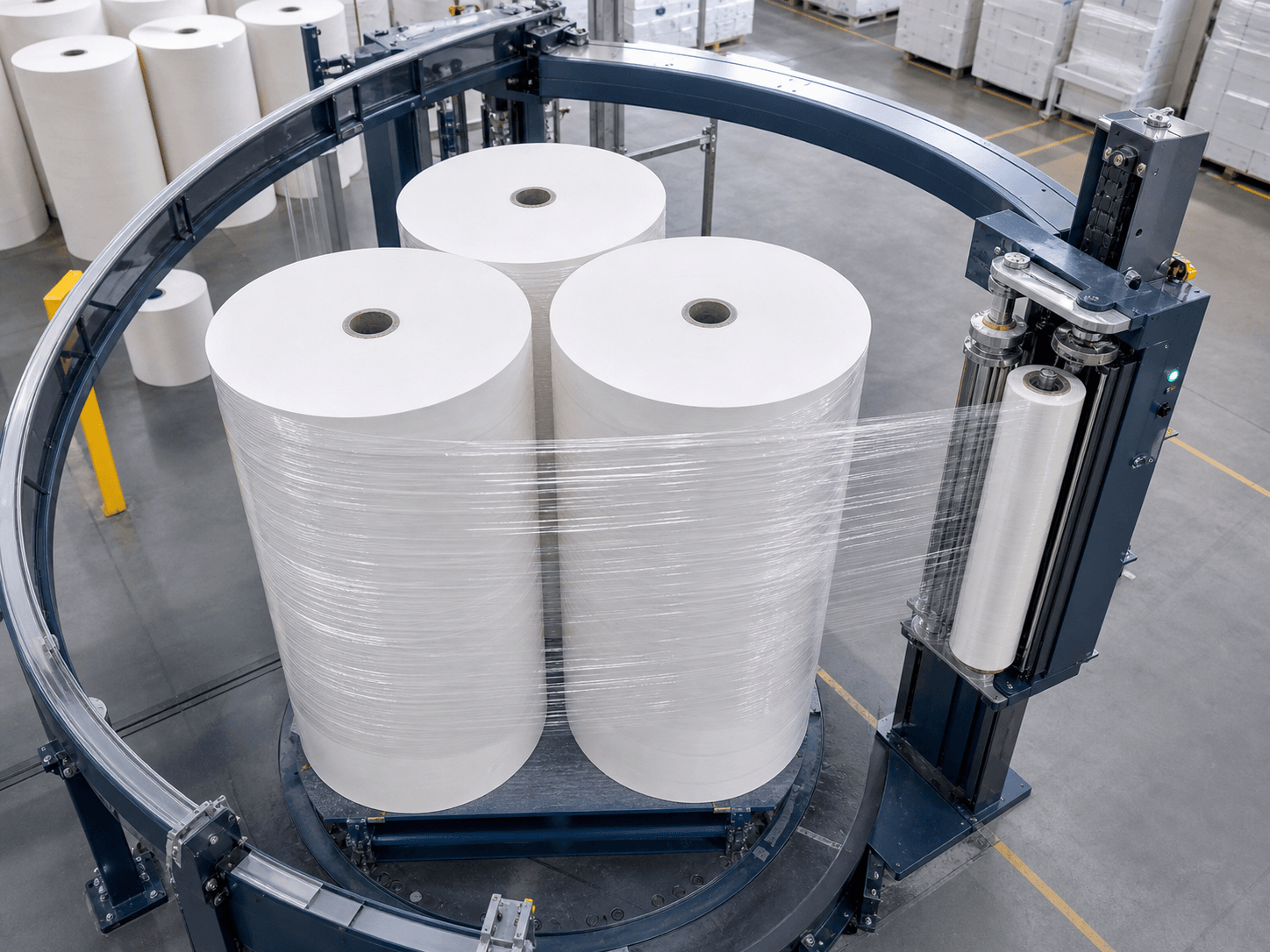

Paper & Printing
Materials
Provides stable containment for paper rolls, cartons, printed products, and other moisture-sensitive loads.

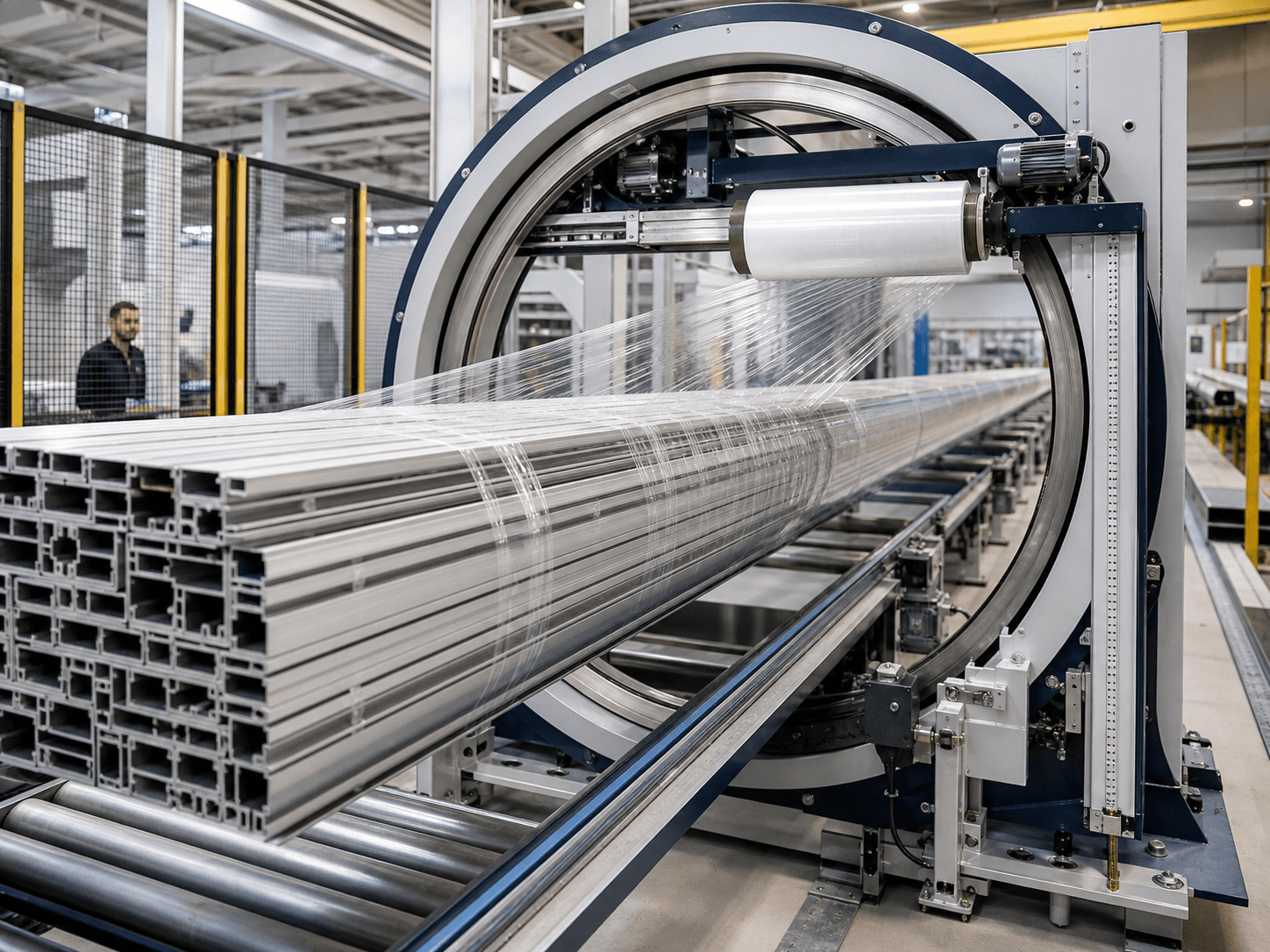

Industrial & Building Materials
Helps secure heavy, irregular, or densely packed industrial products during handling and transportation.
Custom OEM & Private Label Services
Tuosheng offers flexible OEM solutions for machine stretch film to meet different industrial packaging requirements. Film thickness, roll dimensions, colors, paper core options, packaging and private label branding can all be customized to match your equipment, products and market needs

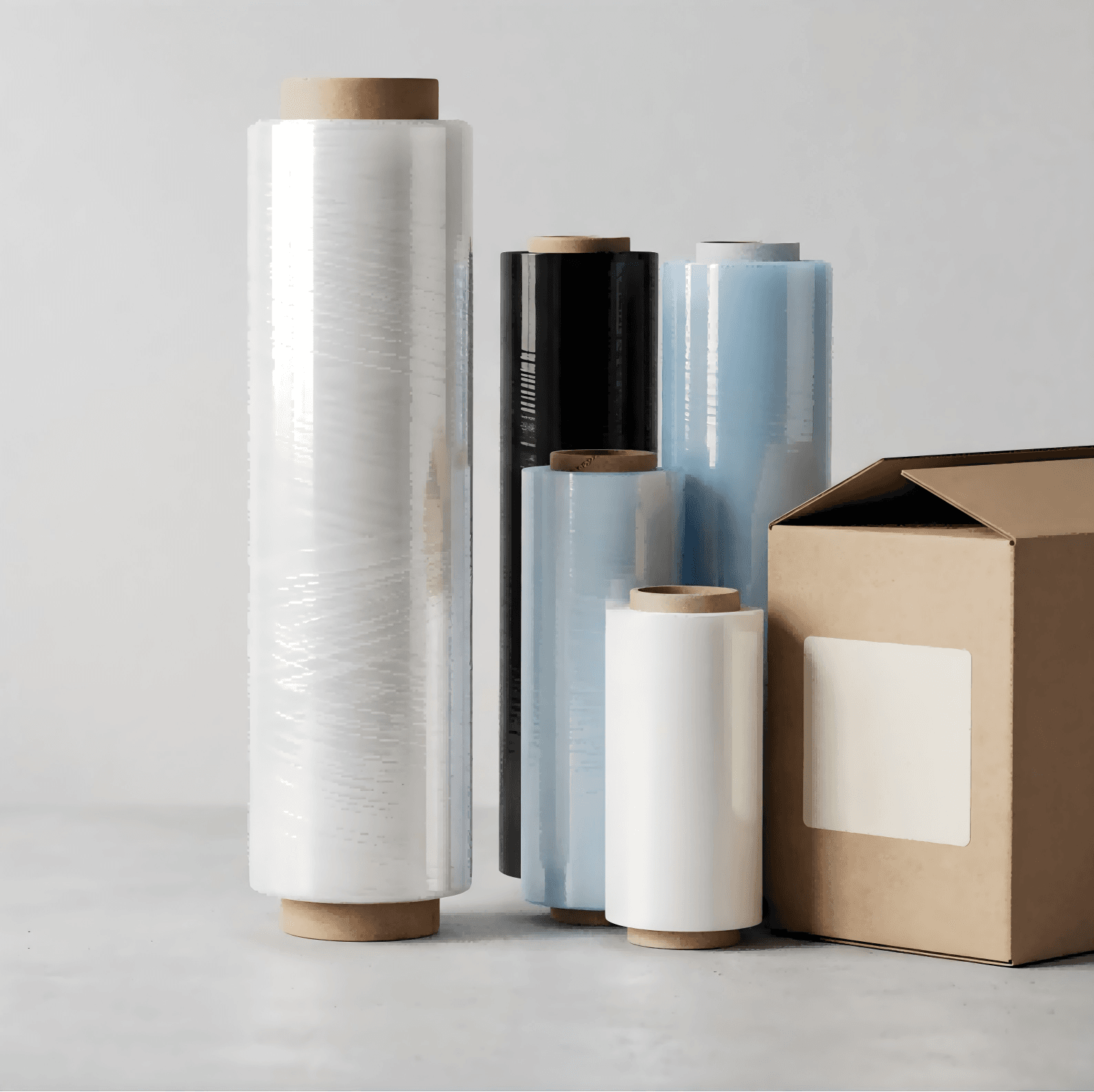

Custom Colors & Film Appearance
Custom Width & Length

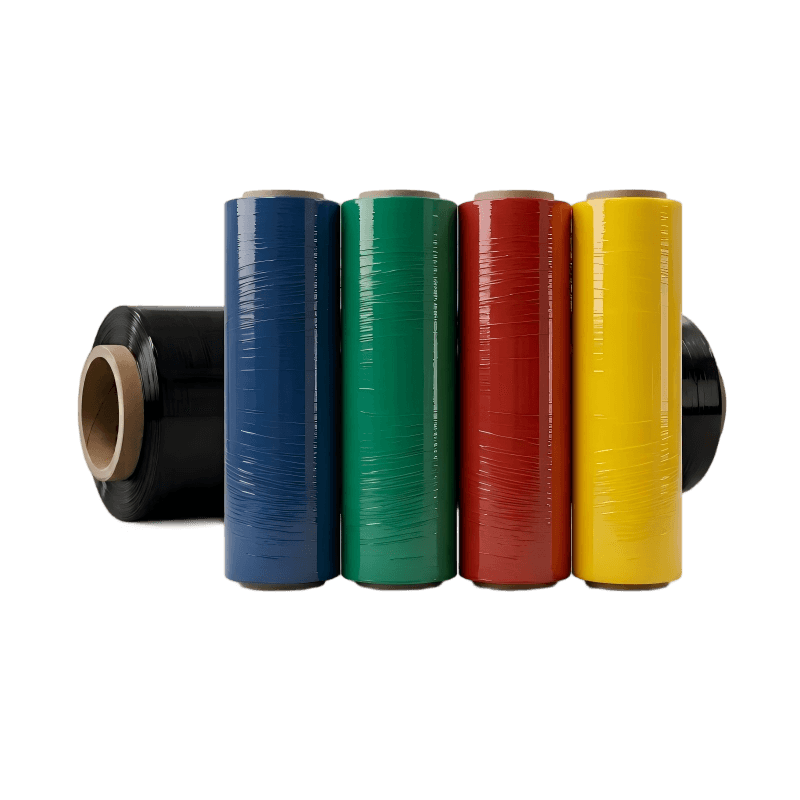

Color Options
OEM Packaging
Frequently Asked Questions
No. Tuosheng Packaging manufactures stretch film only. We match film to the wrapper you already use.
For most mixed carton pallets on a turntable wrapper, 70–80 gauge (about 18–20 µm) works well. Use thinner high-performance grades on powered pre-stretch lines and thicker grades for heavy or sharp-edged loads. See our stretch film thickness guide.
They are the same product. Machine stretch wrap is the usual US term, machine stretch film is common internationally, and pallet wrap is common in the UK.
In the US, 20 in × 5,000 ft rolls at 60–80 gauge are the most common format for semi-automatic wrappers. In Europe and the UK, 500 mm rolls of about 1,500 m at 17–23 µm are typical. We produce to the size you already use.
Our machine stretch film runs on most semi-automatic turntable wrappers and automatic wrappers, including rotary arm and ring systems. Confirm your roll width, core size, maximum roll weight and pre-stretch ratio before ordering.
Machine stretch film comes on larger, heavier rolls and is applied by a wrapper at controlled pre-stretch and tension. Hand stretch film is on smaller rolls for manual wrapping. See machine vs hand stretch film.
Yes. Custom widths, thicknesses, roll lengths and packaging are available. A production-line trial is recommended when changing specifications.
- Yes. Send your wrapper model, pre-stretch ratio, core size, maximum roll diameter and pallet details, and we will recommend a high-stretch grade and send a sample for a line trial.
